Attaching the 2014 Camaro's Rear License Plate
The rear fascia of the 2014 Camaro has small dimples at various
locations around the license plate area. These dimples provide
an accurate reference for the mounting locations for various sized
license plates, depending on the market where the car is sold.
During Pre-Delivery Inspection (PDI), it may appear that the
license plate mounting holes should line up with the large rectangular

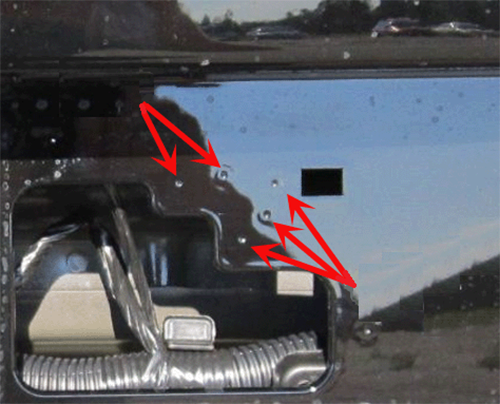

holes in the rear fascia. This is not the case. Behind each of
the rear fascia dimples (See image below) is a plastic
boss.

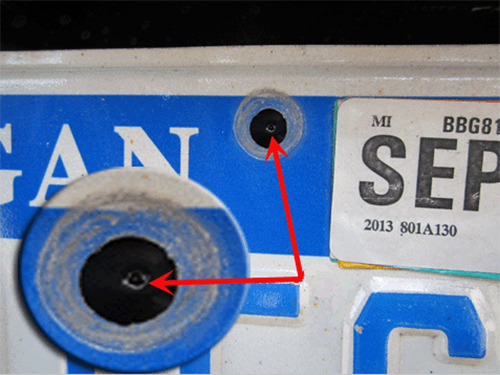

Center the license plate on the rear fascia and confirm that
a dimple is visible in each of the license plate mounting holes.
(See image below)
With the correct location confirmed, install the license plate
using the self-tapping screws included in the PDI bag. It is not
necessary to pre-drill the holes. The self-tapping screws will
attach the license plate to the rear fascia.
|
